Agriculture

AC Tony 8900 V Tractor

Client:

Antonio Carraro

Antonio Carraro is a world company leader in the production of compact tractors for agriculture

Request:

Concept and development of the new aesthetic of front bonnet, cabin roof and interiors.

Input

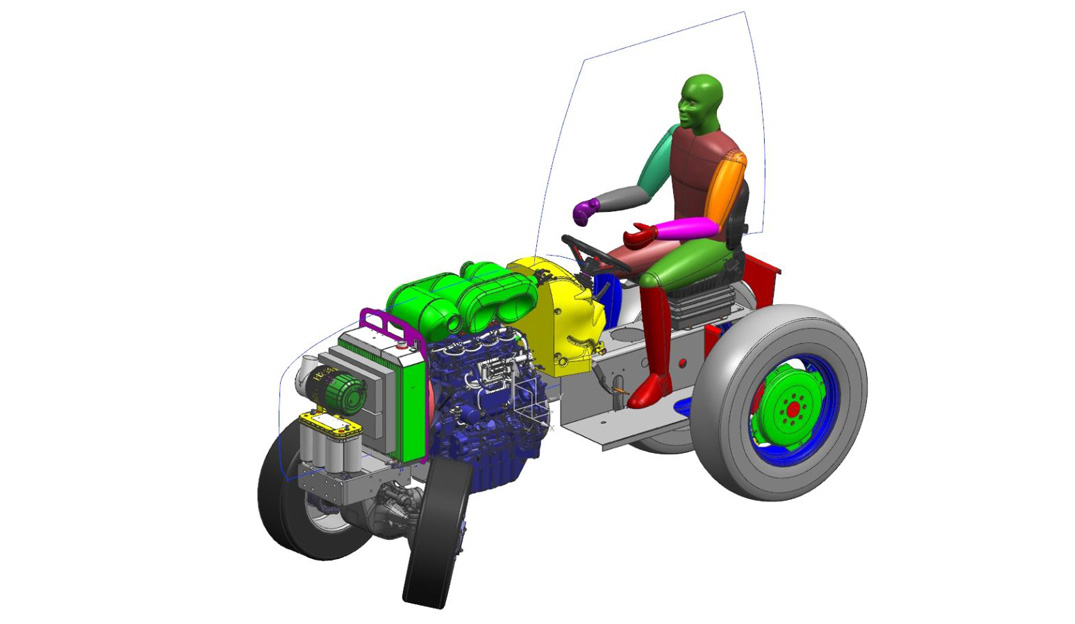

The customer has provided the dimension of the chassis, engine and all the design constraints such as: fixings, tilting front wheels, tractor configurations and all the spaces to respect.

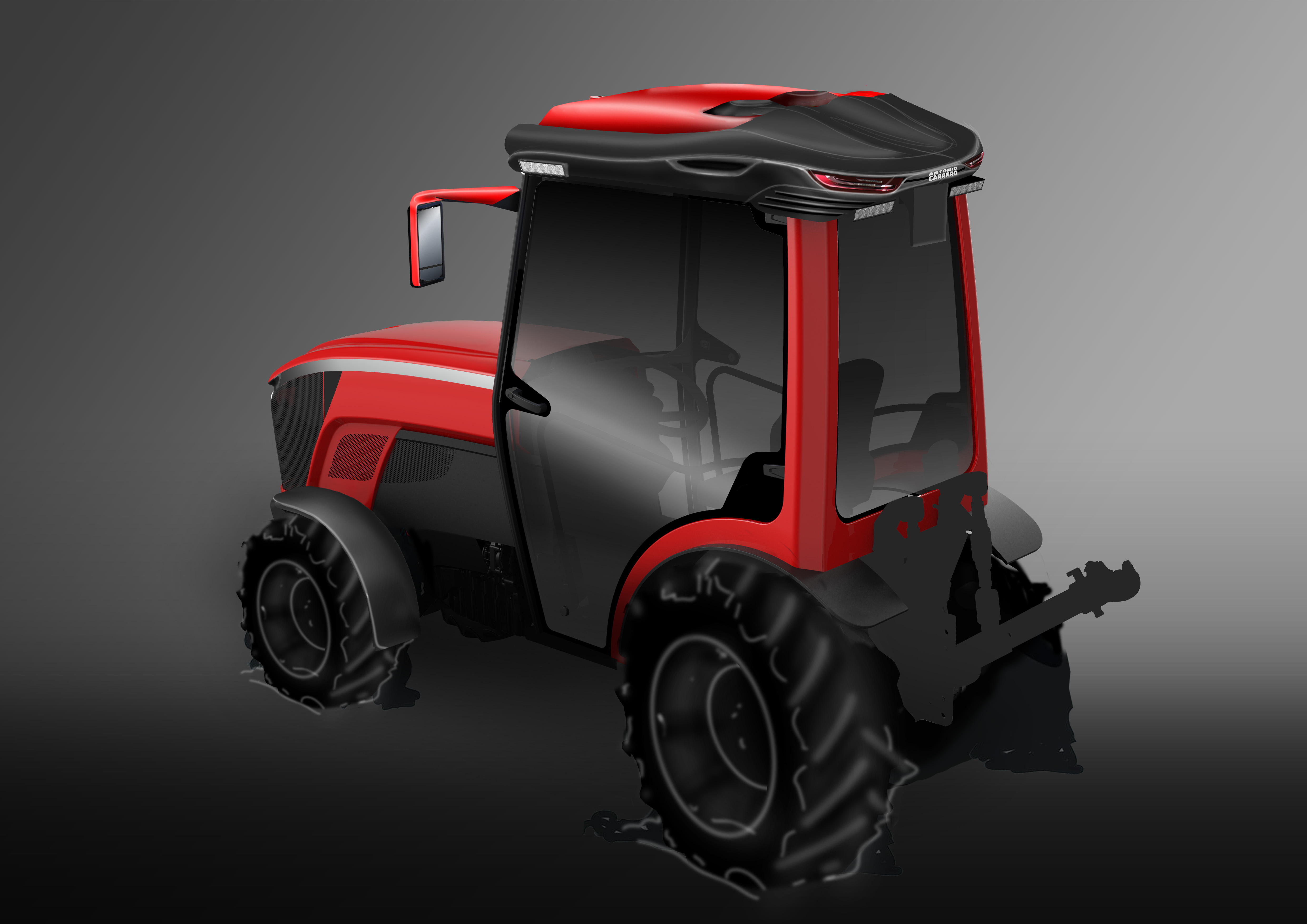

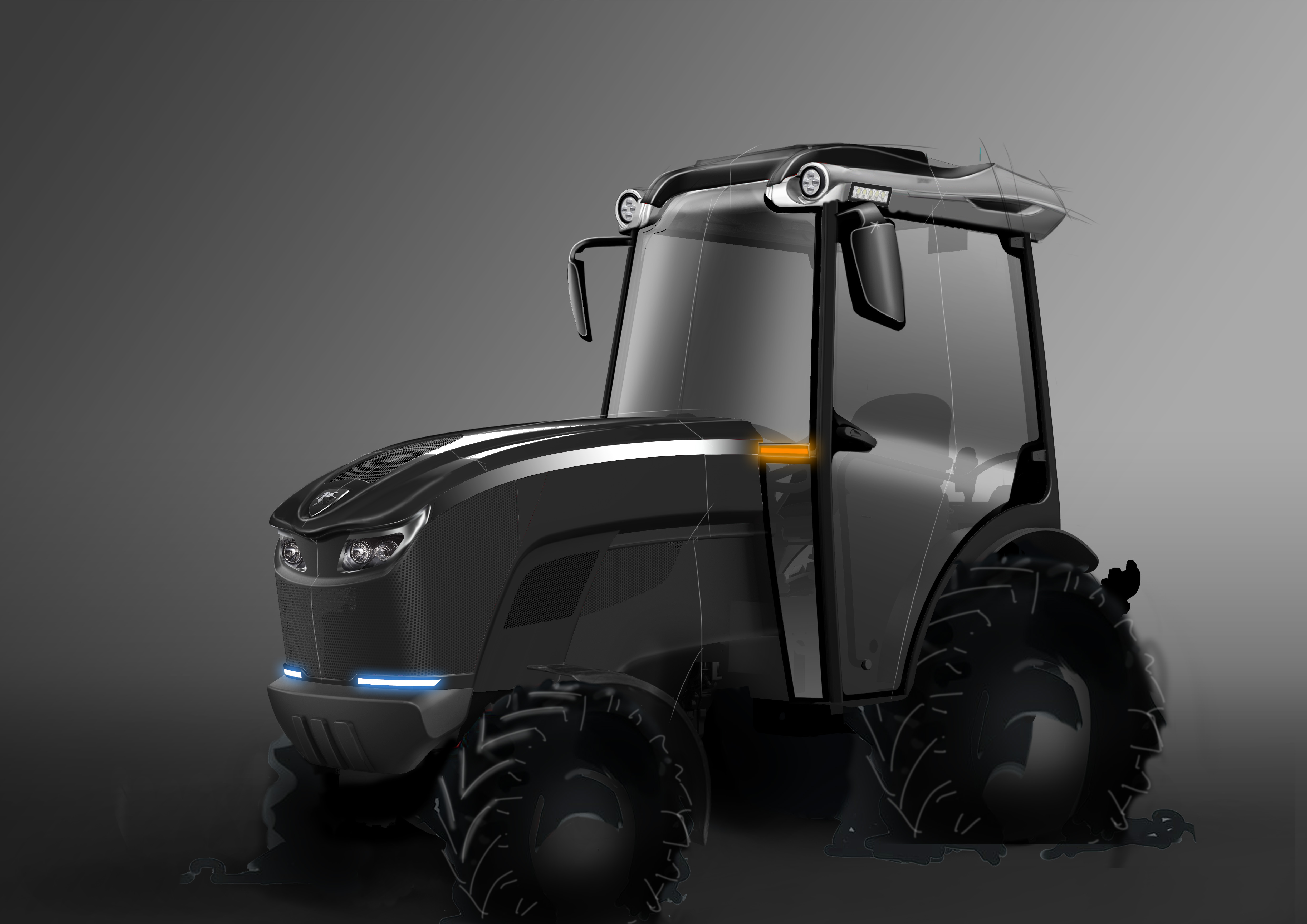

Concept

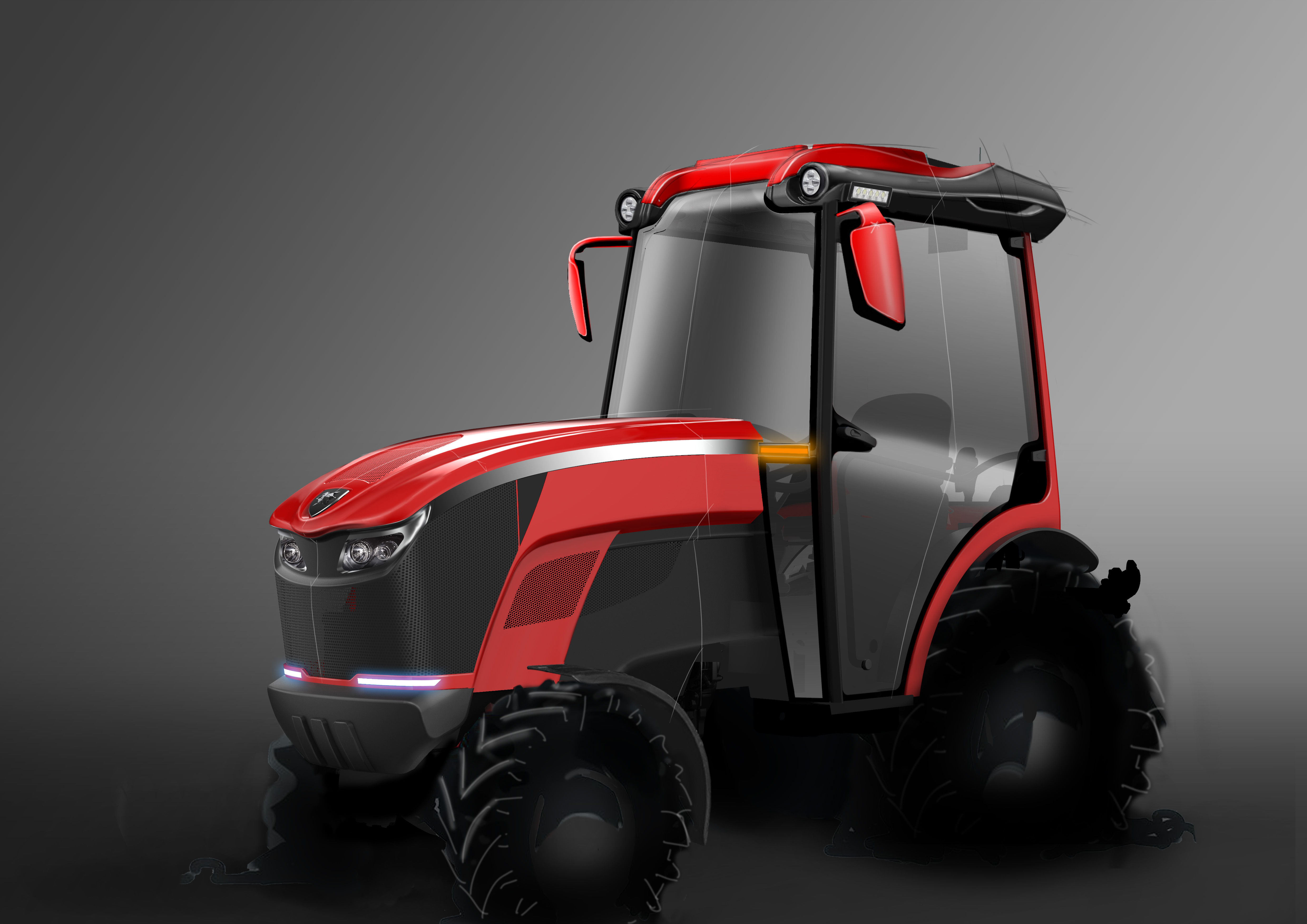

The first phase of the project was dedicated to drawing up the aesthetic concept, defining all the possible variations of style.

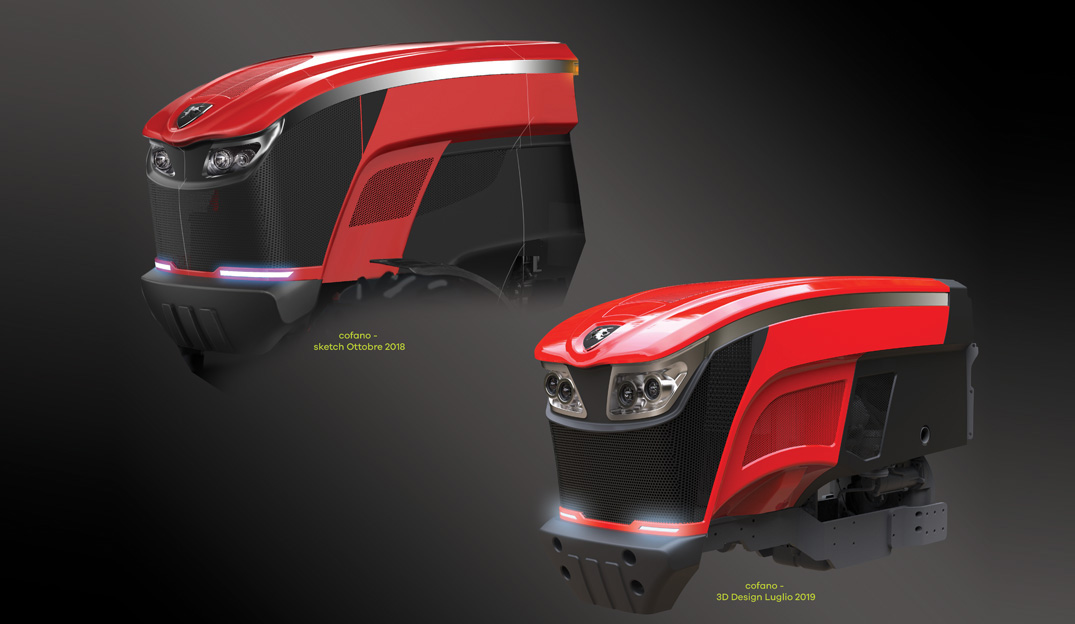

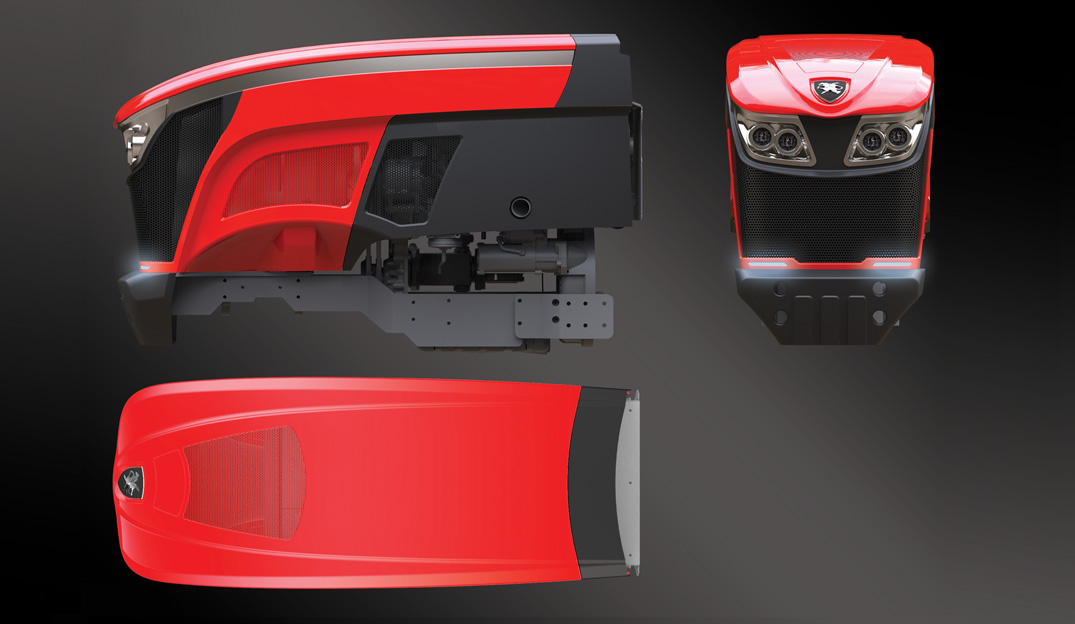

Bonnet_Design

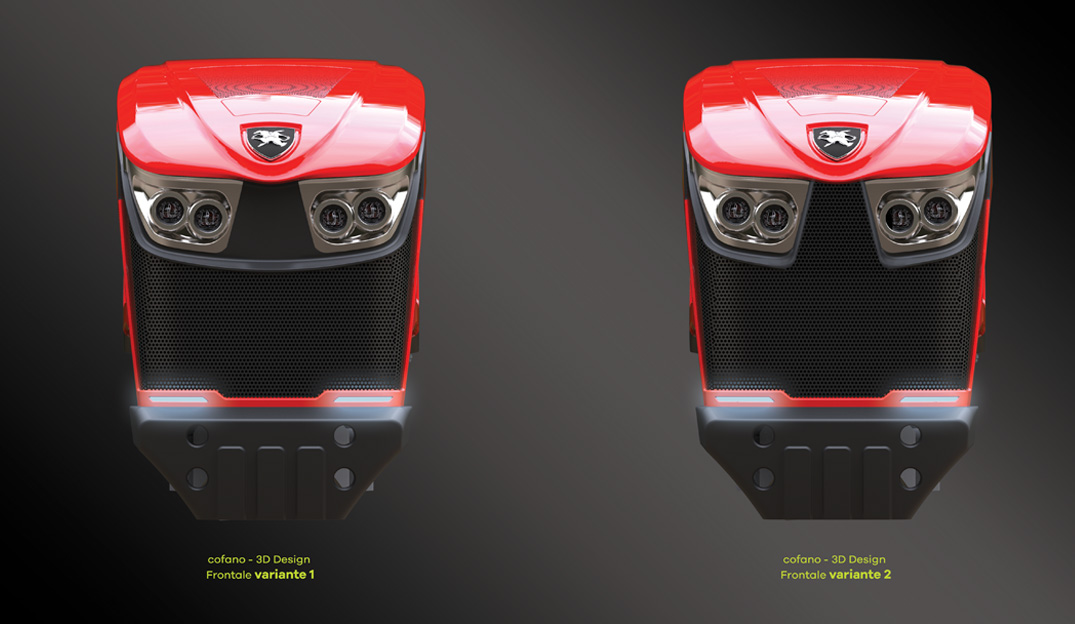

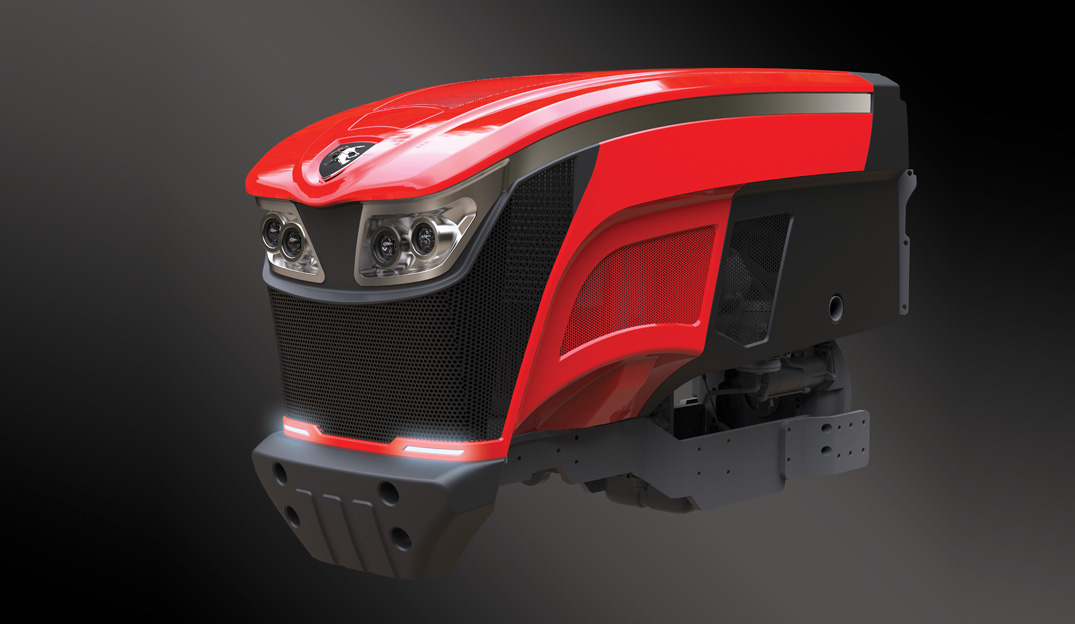

After studying the engine dimensions and the distances to be maintained in relation to the areas most sensitive to heat, the proposed concept was deepened, creating a detailed aesthetic solution for the bonnet.

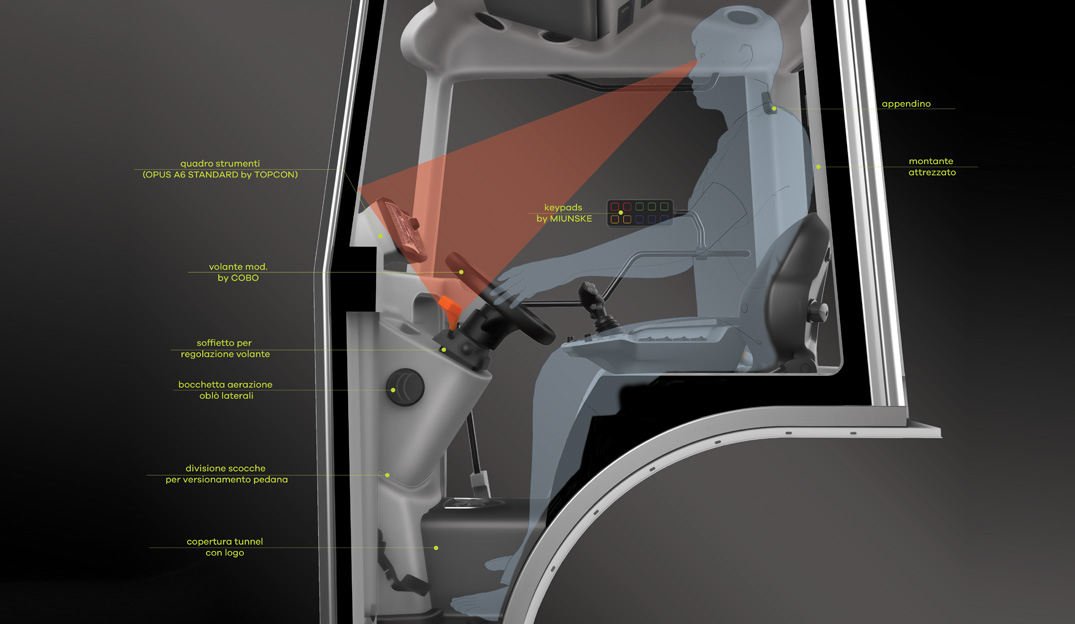

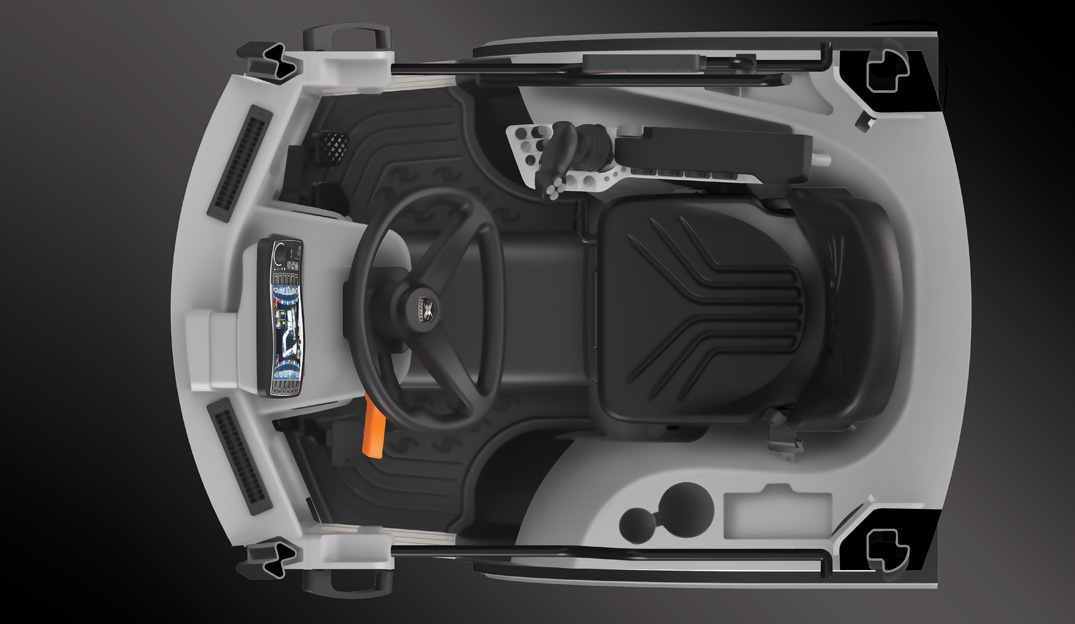

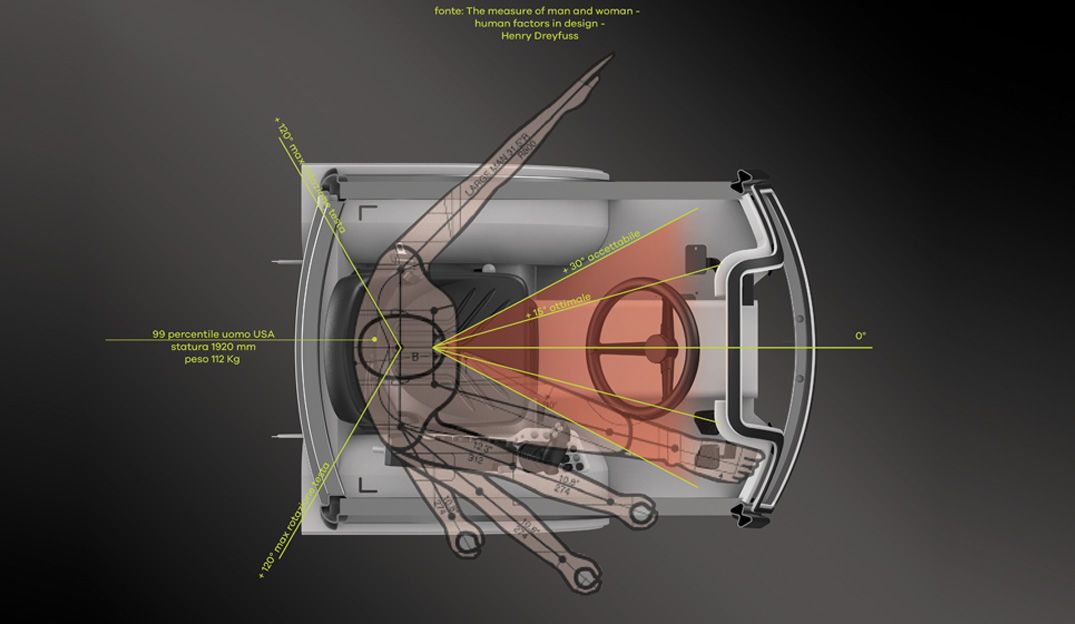

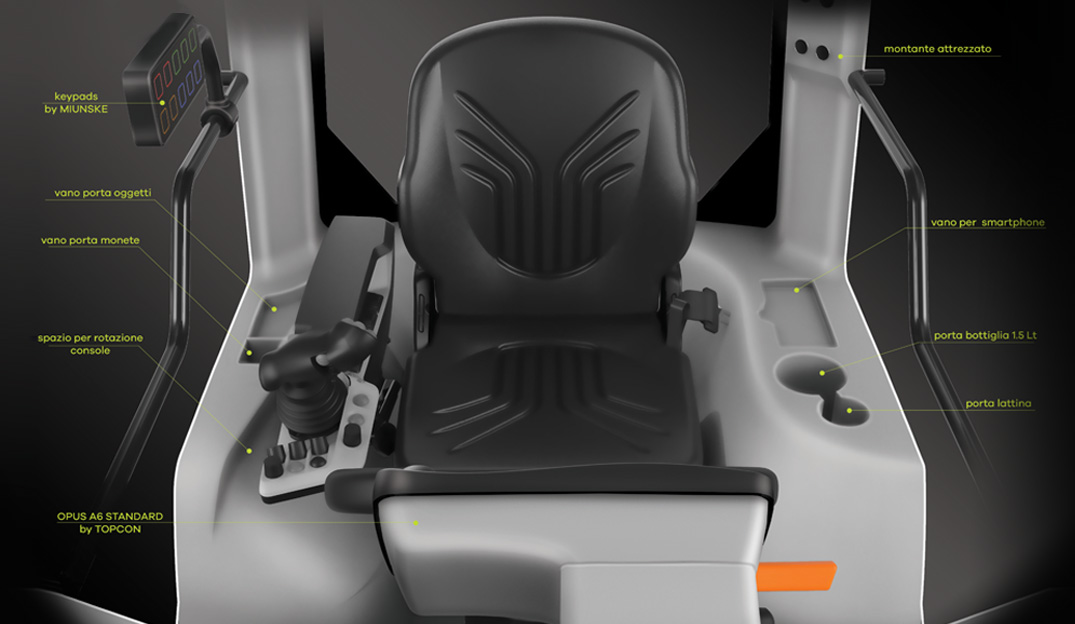

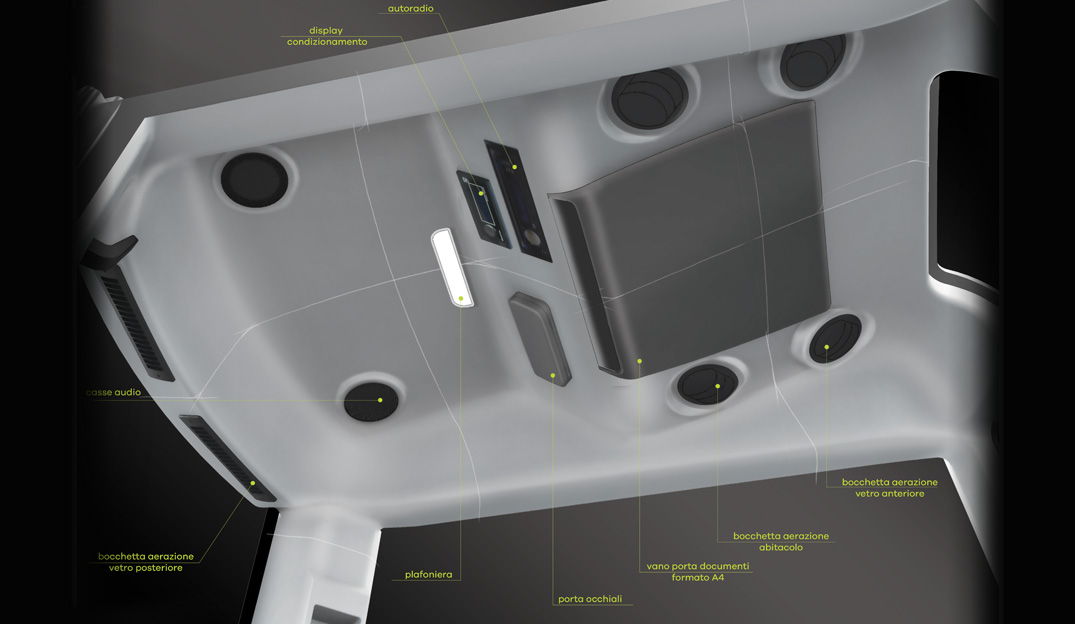

Design_Cabina

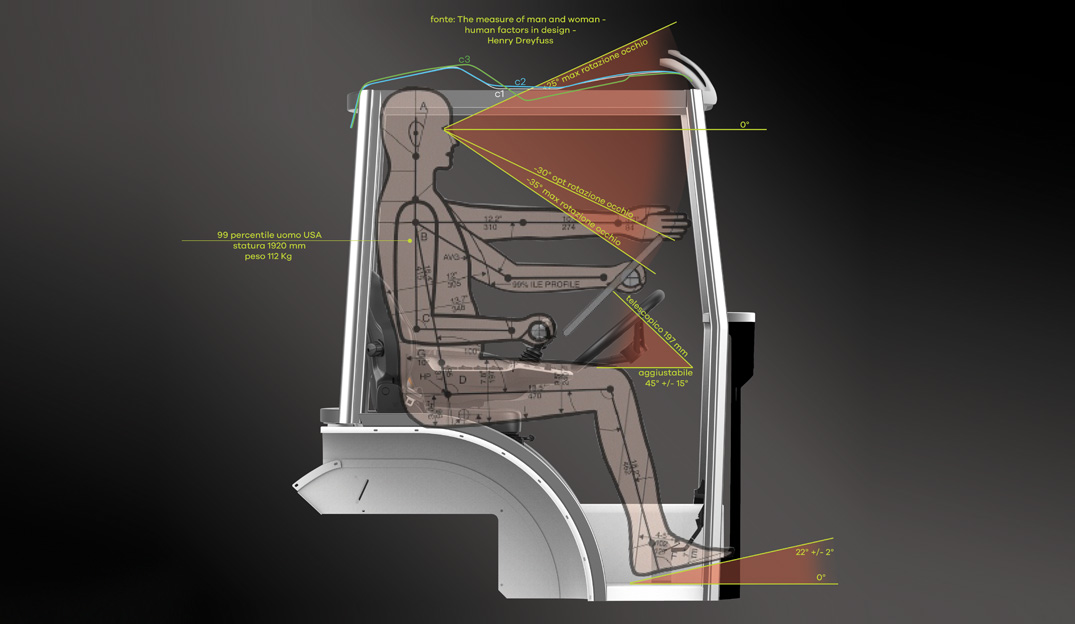

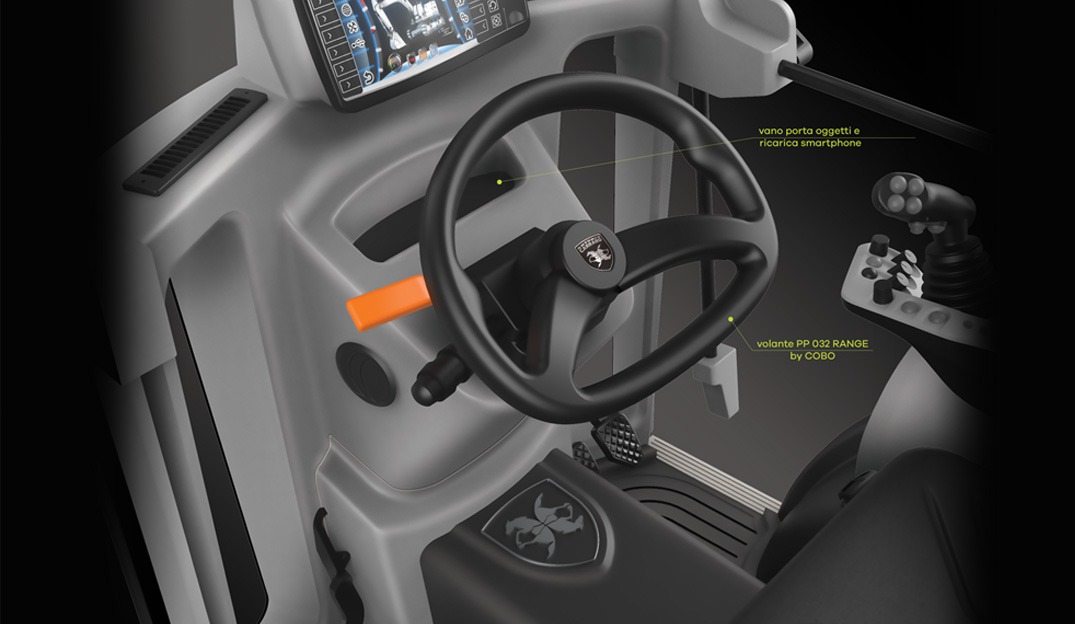

Una volta analizzati gli ingombri previsti, è stato fatto uno studio ergonomico per l’interno cabina. Si è quindi passati a realizzare una soluzione estetica-funzionale delle varie componenti.

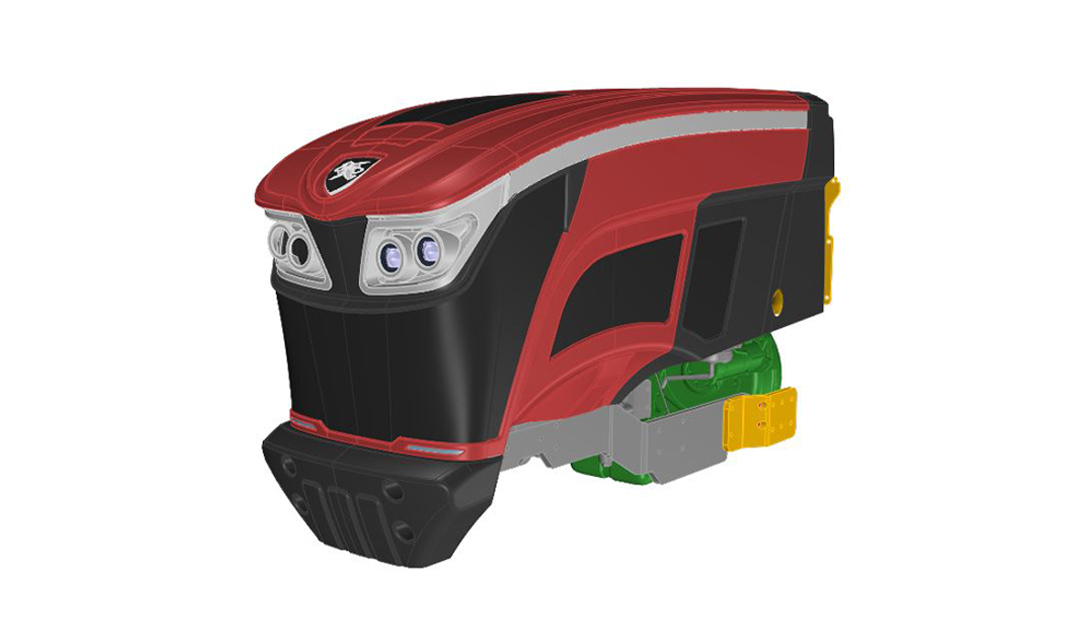

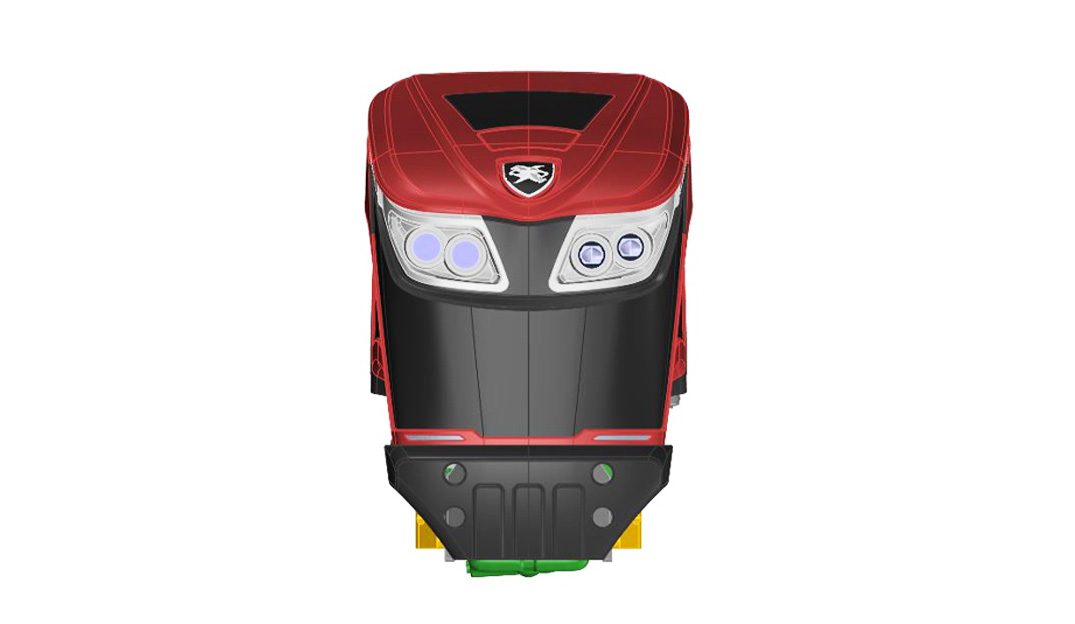

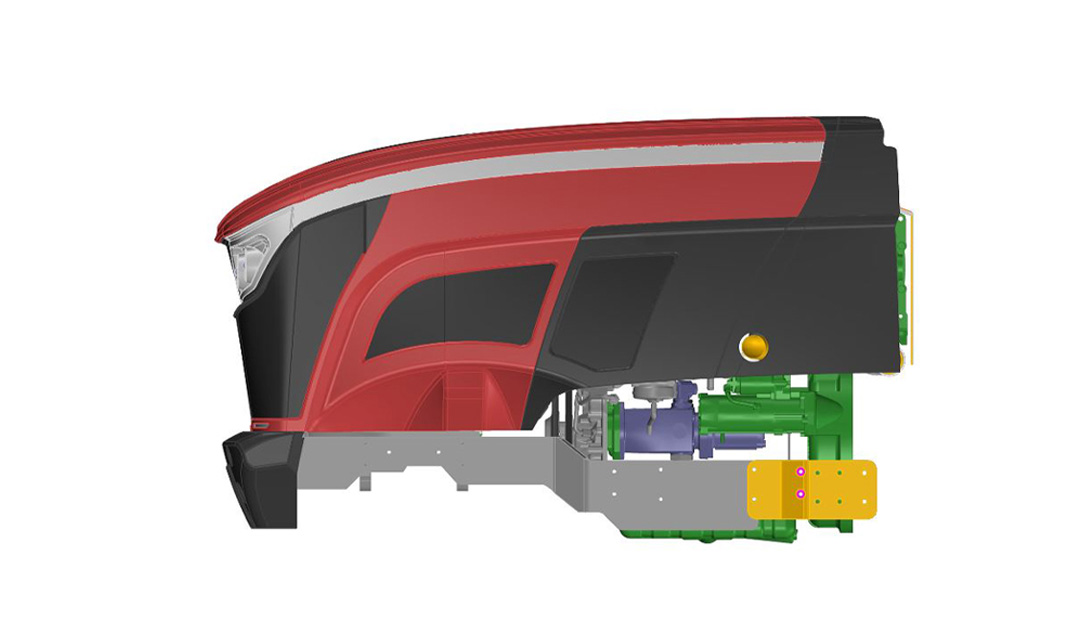

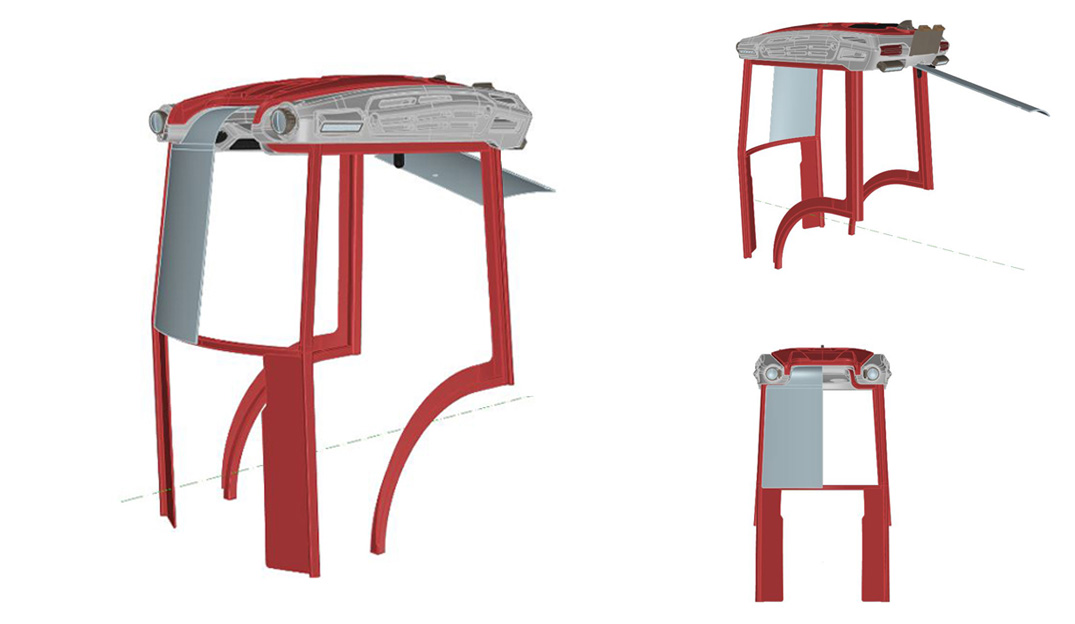

Progettazione_Esterni

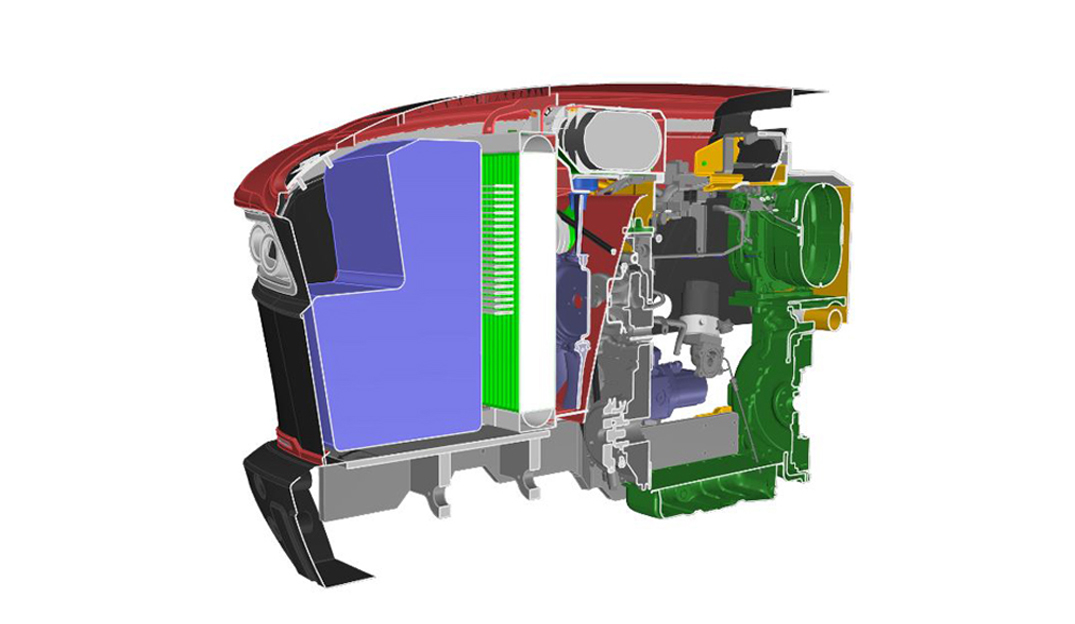

Dopo aver approvato lo stile estetico, si è passati allo sviluppo in SolidWorks e CREO Parametric delle parti. I tecnici Rend hanno modellato i particolari volti alla prototipazione in vetroresina del cofano e del tetto cabina.

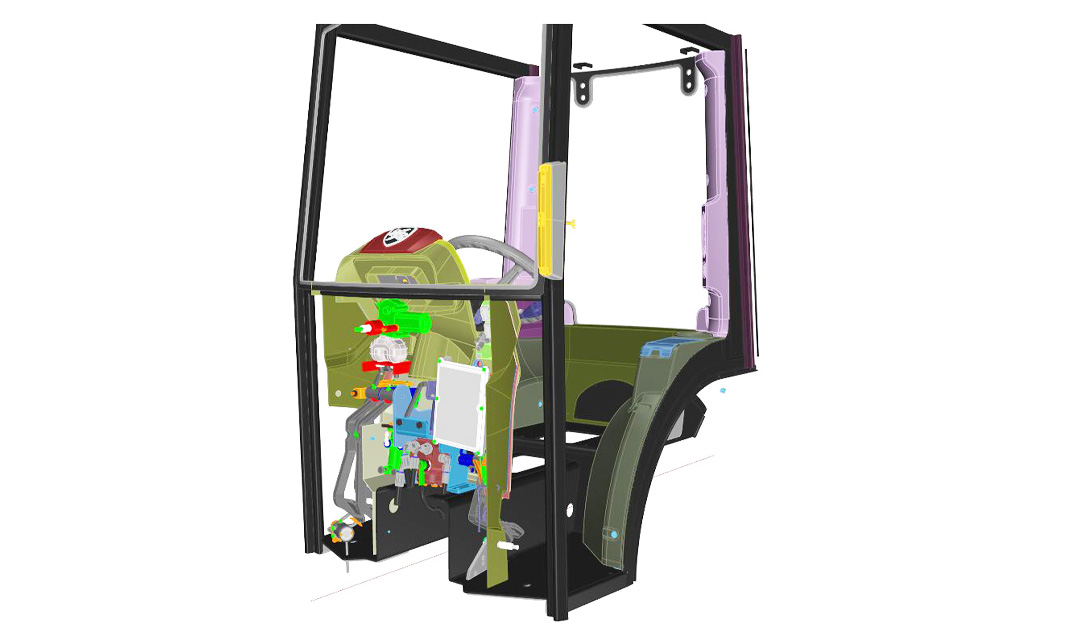

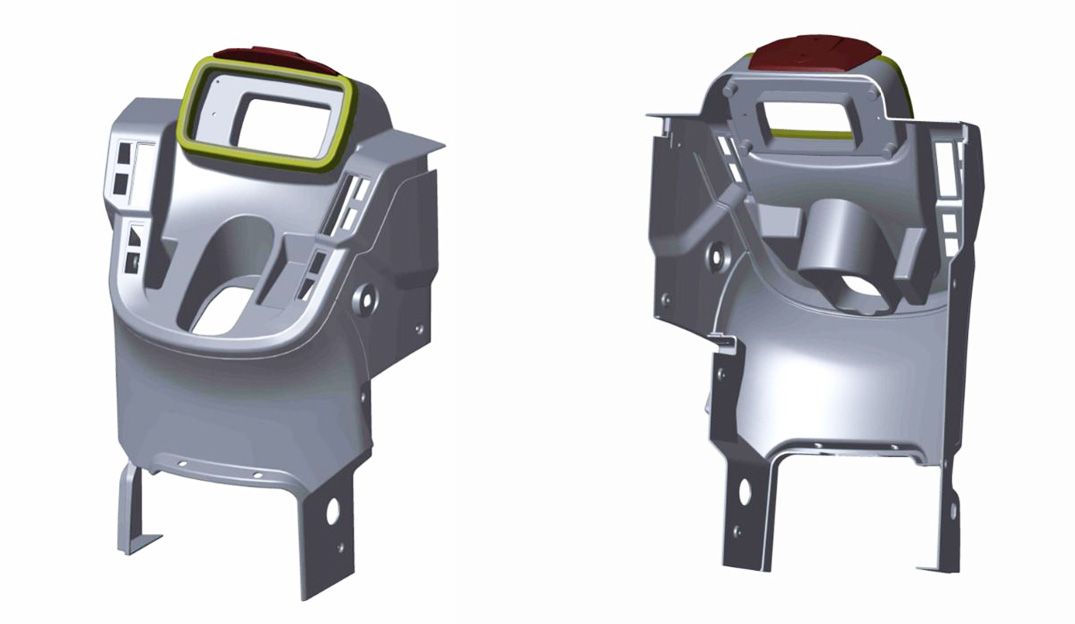

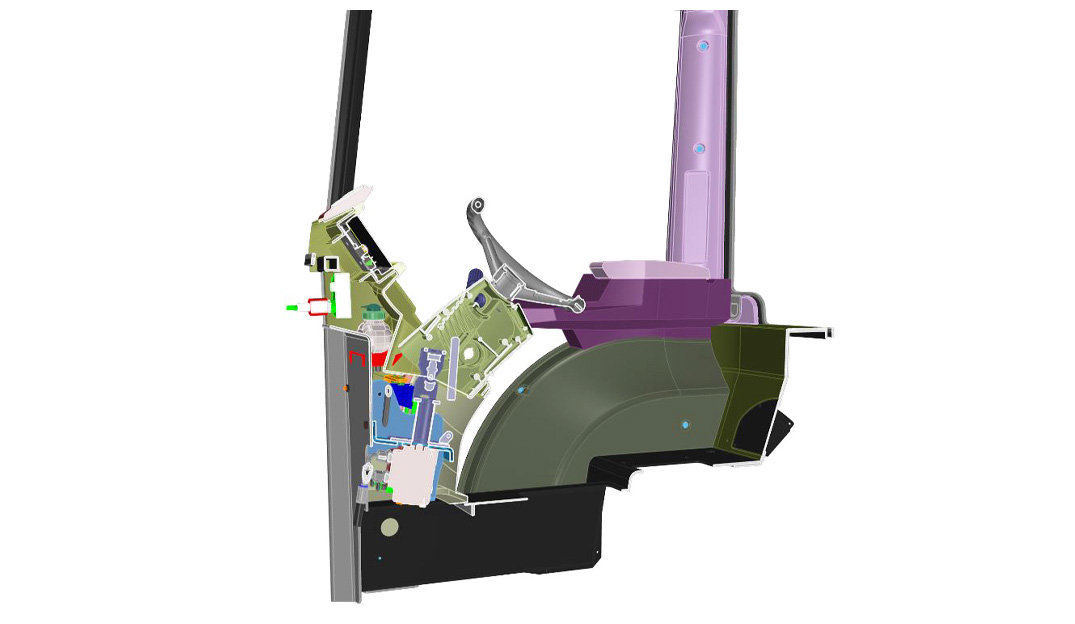

Progettazione_Interni

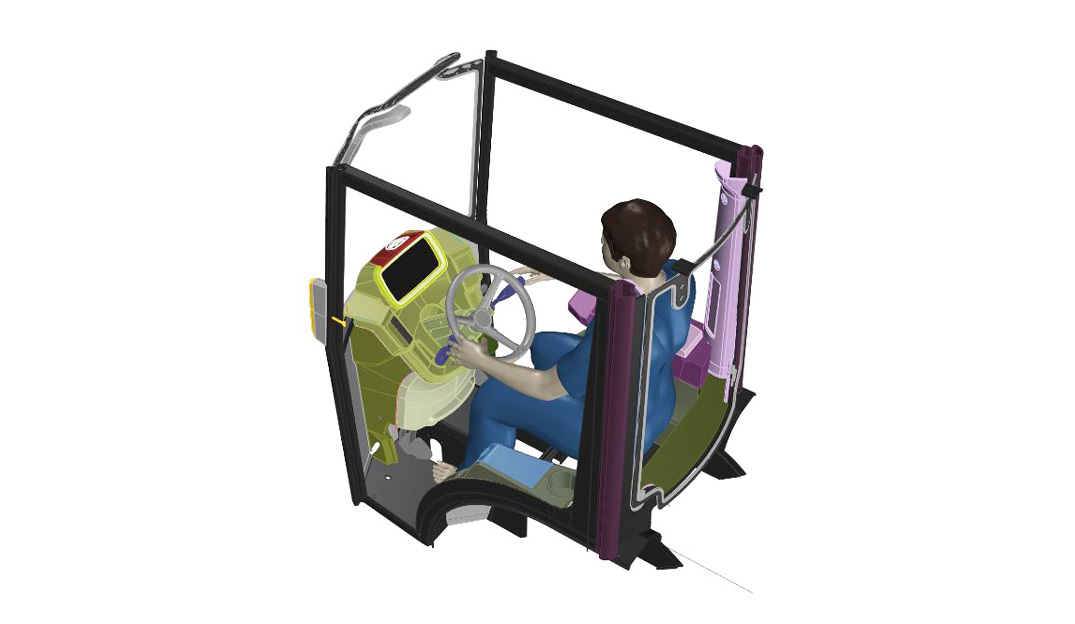

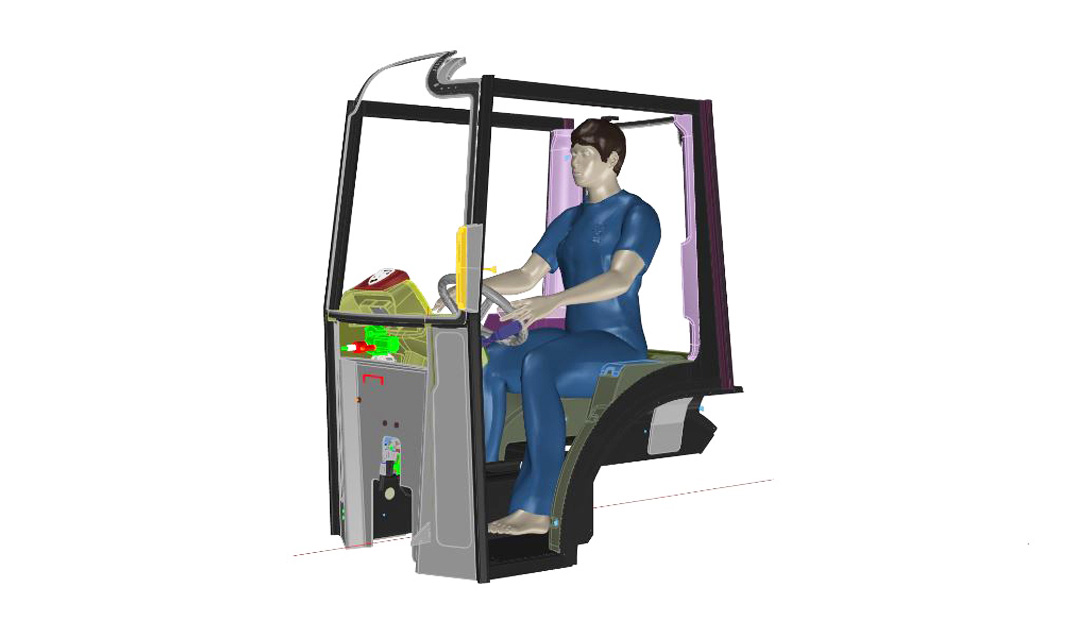

Una volta analizzati ingombri e spazi, sono stati modellati i nuovi interni. Infine, tramite prototipazione rapida, è stato realizzato un modello dell’interno cabina, in modo da verificarne funzionalità e stabilità.
