Industrial systems

Silos layout

Client:

Ag Growth International

Ag Growth International (AGI), a leading manufacturer of equipment for the handling, storage and conditioning of cereals, feed and fertilisers.

Request:

3D modelling and drafting of hopper construction drawings for different silos models

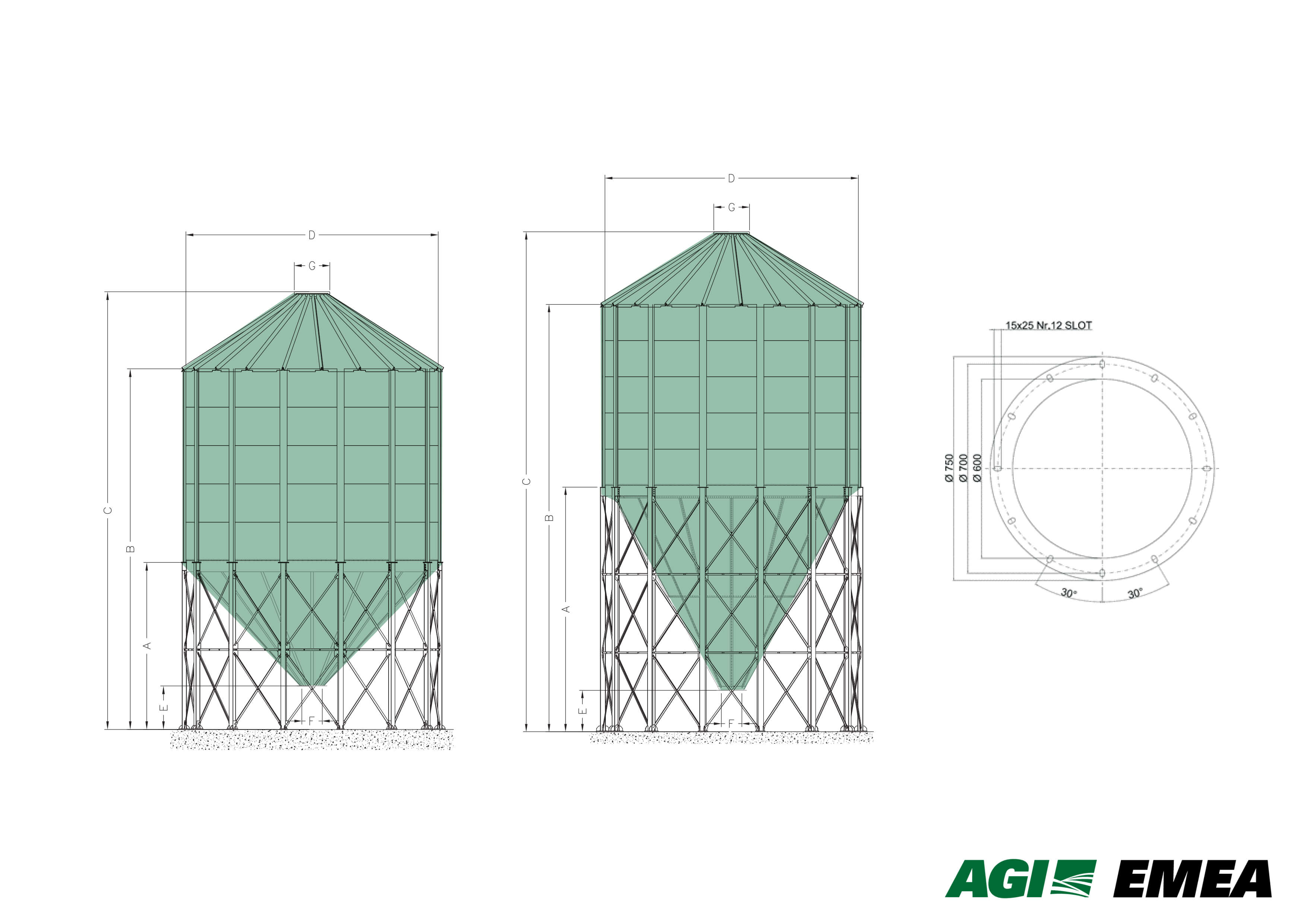

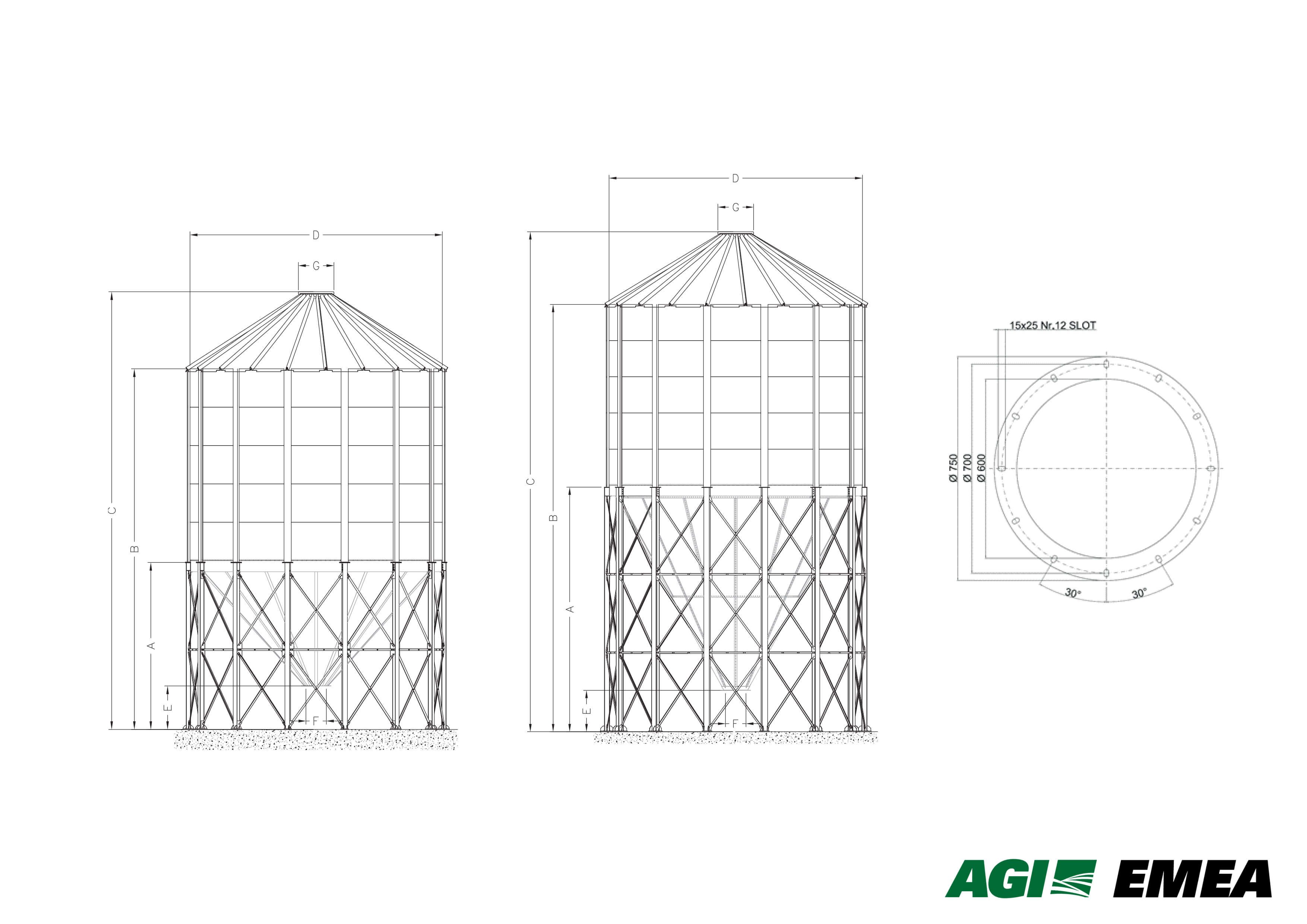

The customer provided the design data (thickness, materials, drill holes, element geometries) and the technical specifications such as dimensions, use of sheet metal and opening diameter.

Design

The roof layout was drafted out according to the written indications on the datasheet provided by the customer. As for the hopper, various solutions for modelling the drill holes in the segments were studied. The segments (with sheet metal cutting) that make up the hopper and the assembly sequence of the various parts were then created.

Images

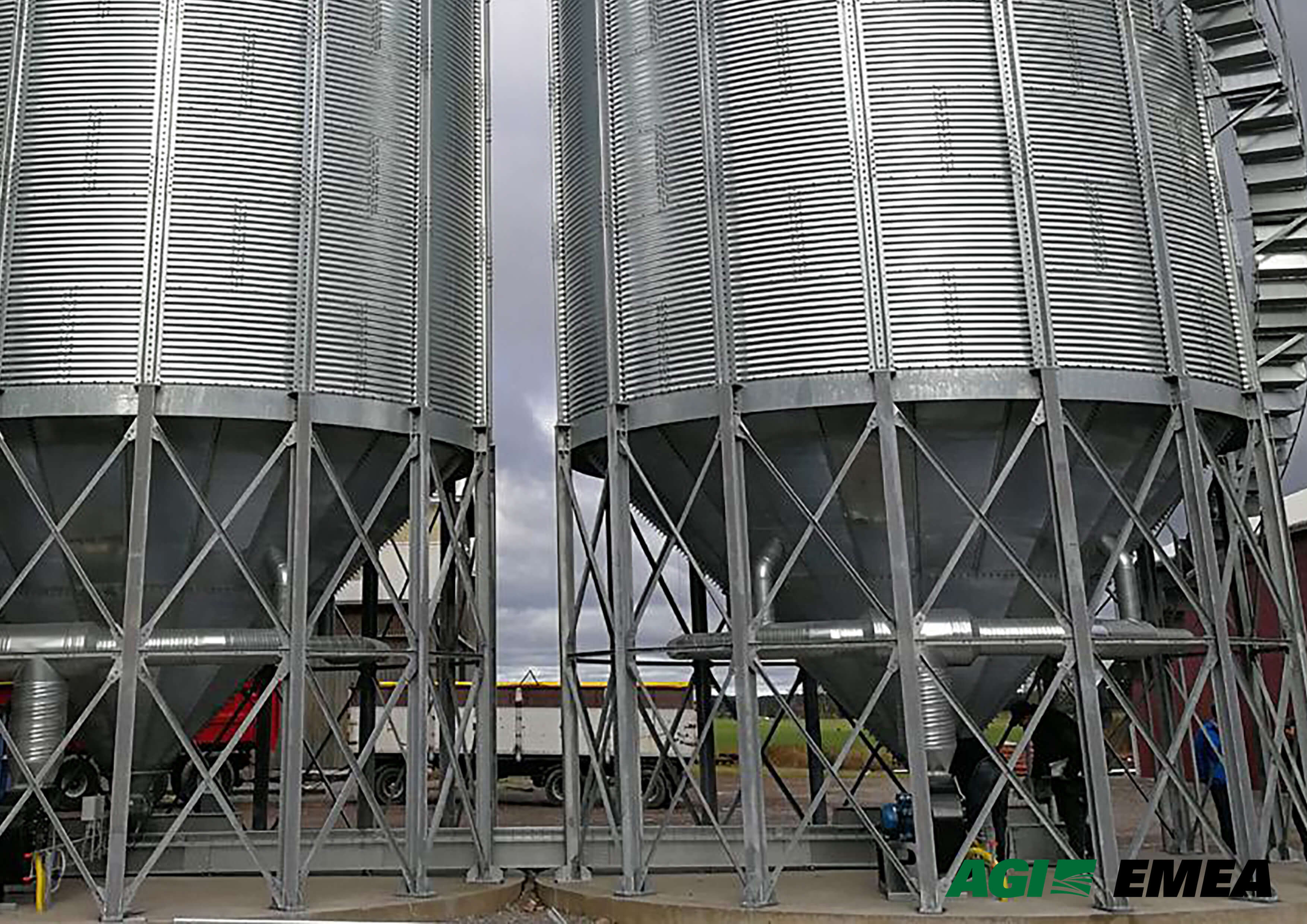

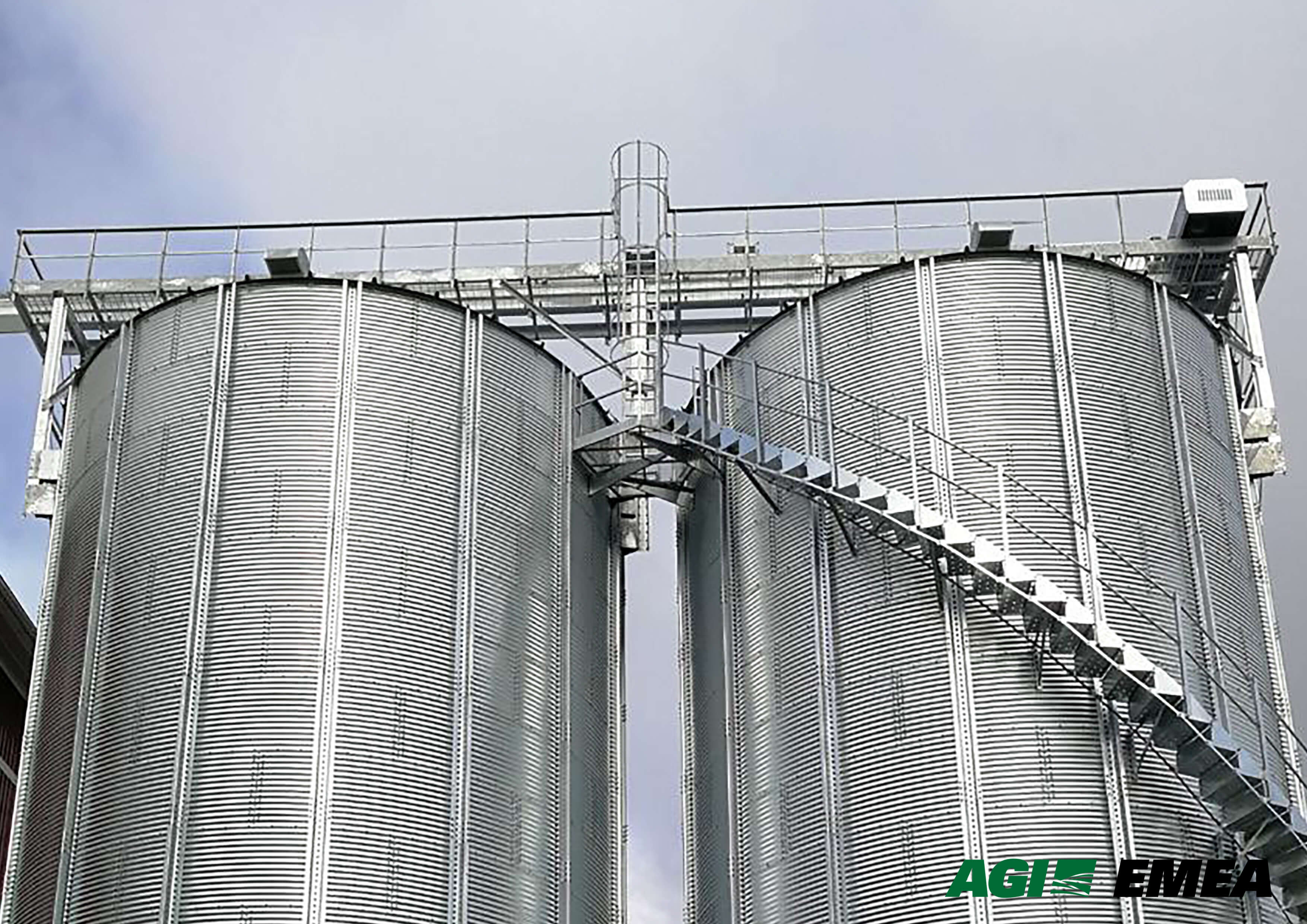

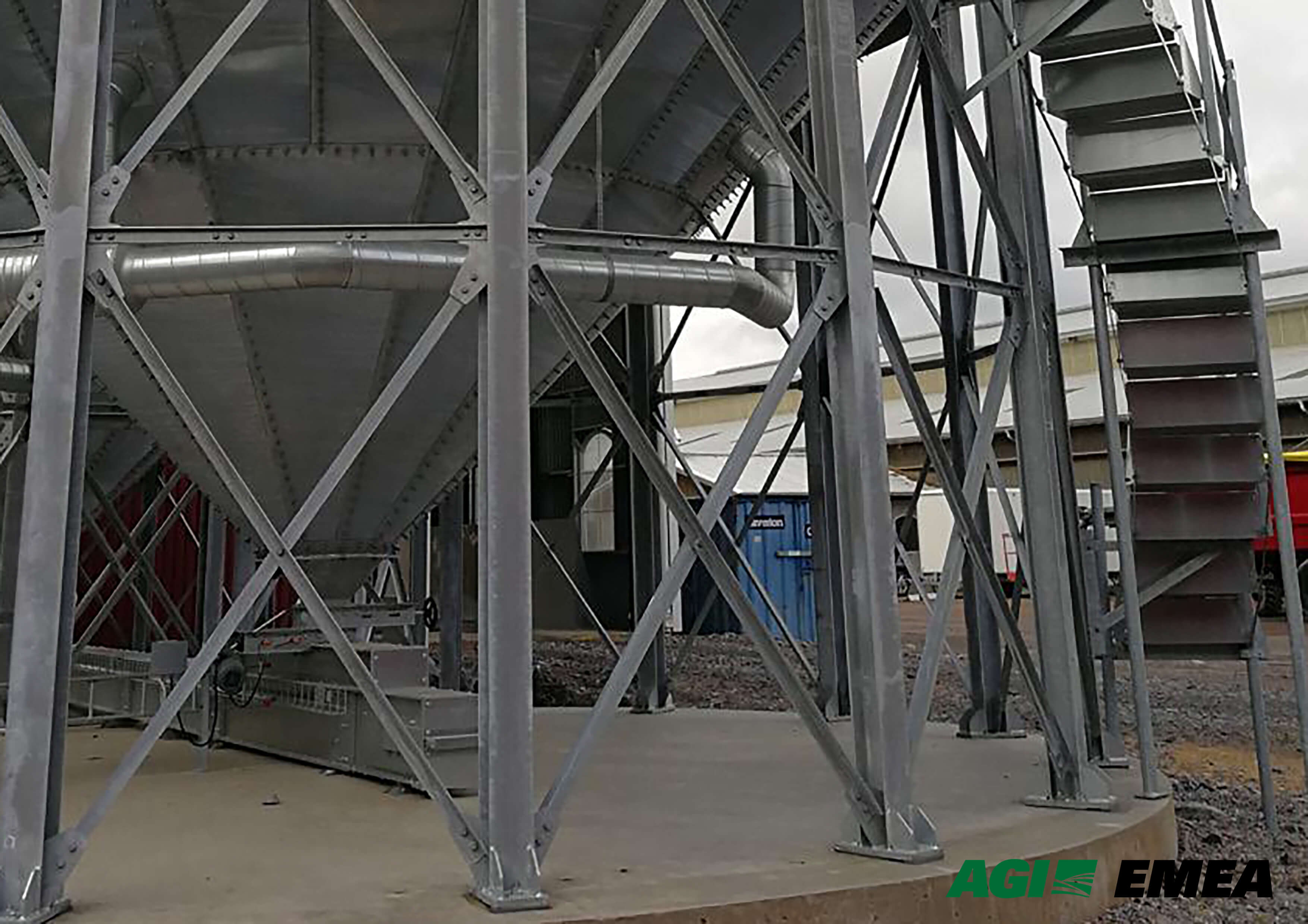

Images of the finished and installed system after production.
